ET7016

  • Product Introduction

Compact Landscape Light.

Die casting aluminum body.

Ultra white tempered glass.

Silicone gasket.

High efficiency PMMA lens.

Anti-corrosion electrostatic powder coating.

Stainless steel external screws and mounting plate.

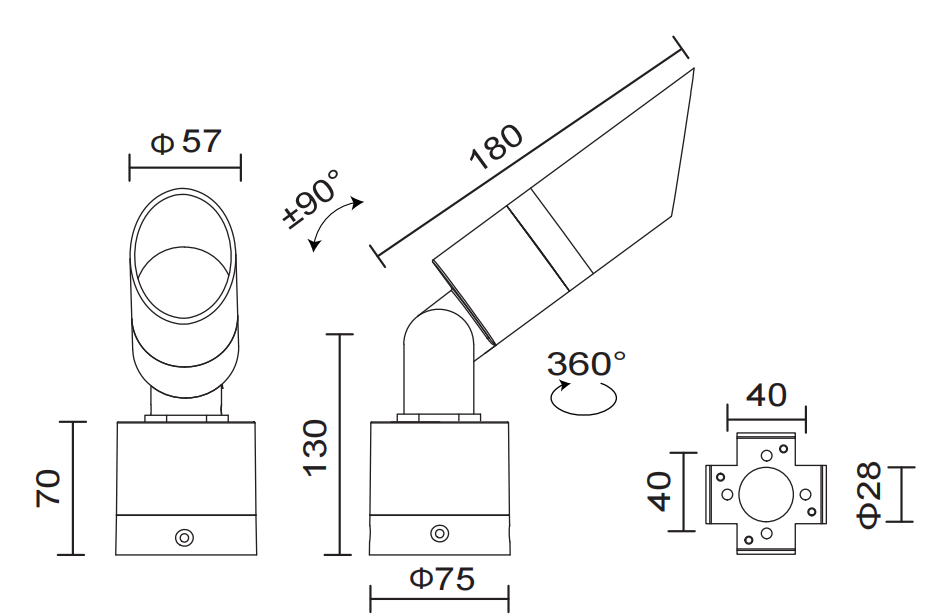

Vertically ± 90 ° adjust and horizontally 360 ° rotate.

Special surface treatment is required for coastal environments.

Structurally waterproof, detachable for easy maintenance of LED, lens, shroud and driver.



Model Power Beam angle CCT Luminous flux Control SDCM CRI LED Voltage Weight
ET7016.12.RGBW 11W 12° / 25° / 36° / 60° / 15°*45° 2700K / 3000K / 4000K / 5000K ON/OFF 80 LEDx1 100V-240V 1.2KG
ET7016.15.30K 11W 15° /24° / 36° / 50° /20°*50° 2700K / 3000K / 4000K / 5000K 911lm ON/OFF 3 80 COBx1 100V - 240V 1.2KG
  • Specifications
  • Download
  • Accessory

ET7016.12.RGBW

Electrical and Control

Voltage 100V-240V
Power11W
Power SupplyBuilt-in
ControlON/OFF / 0-10V / DALI
Cable0.5M H05RN-F 3x1mm2
Environmental-20 °C ~ 50 °C


LED and Optics

LED BrandCITIZEN / CREE
LED QuantityLED X 1
Beam Angle12° / 25° / 36° / 60° / 15°*45°
Delivered Lumen
Colour RenderingCRI 80
SDCM
CCT2700K / 3000K / 4000K / 5000K
LED OpticPMMA Lens


Physical

HousingDie-cast aluminum
Lens MaterialTempered glass
External ScrewStainless steel material
Surface TreatmentAnticorrosive coating
Net Weight1.2KG
Warranty3 years
RatingIP65
Impact ProtectionIK08
CertificationsCE




ET7016.12.RGBW

Documents

ET7016.12.RGBW

Optional accessories

  • Specifications
  • Download
  • Accessory

ET7016.15.30K

Electrical and Control

Voltage 100V-240V
Power11W
Power SupplyBuilt-in
ControlON/OFF / 0-10V / DALI
Cable0.5M H05RN-F 3x1mm2
Environmental-20 °C ~ 50 °C


LED and Optics

LED BrandCITIZEN / CREE
LED QuantityCOB X 1
Beam Angle15° / 24° / 36° / 50° / 20°x50°
Delivered Lumen911lm (3000K 24°)
Colour RenderingCRI 80
SDCM3
CCT2700K / 3000K / 4000K / 5000K
LED OpticPMMA Lens


Physical

HousingDie-cast aluminum
Lens MaterialTempered glass
External ScrewStainless steel material
Surface TreatmentAnticorrosive coating
Net Weight1.2KG
Warranty3 years
RatingIP65
Impact ProtectionIK08
CertificationsCE



ET7016.15.30K

Documents

ET7016

ET7016.15.30K

Optional accessories

  • Information
  • Downloads
  • Accessories
  • Service

71 025

DALI cross switch

DALI cross switch
sdsdsds

71 025

DALI cross switch

DALI cross switch
Documents

Product data sheet

Product data sheet

The technical specifications in the instructions for use, product data sheets and quotation texts refer to the products manufactured at the time of publication. We are constantly working to improve the performance and efficiency of our products. The goods delivered may therefore deviate slightly from those advertised.
