ET6896

  • Product Introduction

Aviation Aluminum body, tough and super high performance of heat dissipation.

Ultra white tempered glass.

Silicone gasket.

High efficiency PMMA lens.

First surface brushed treatment and then spraying plastics.

Anti-corrosive electrostatic powder coating.

Stainless steel external screws and mounting brackets

Special surface treatment is required for special coastal environments.

The product is waterproof and sealed with sealing compound.

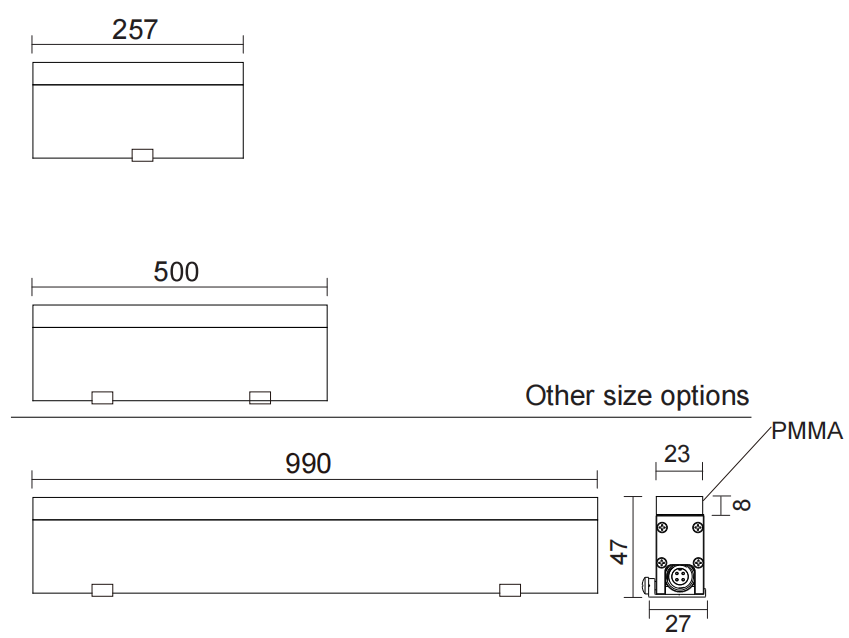

Different lengths are available by customization.



Model Power Beam angle CCT Luminous flux Control SDCM CRI LED Voltage Weight
ET6896.RGBW 15W 120° 2700K / 3000K / 4000K DMX512 SMDx48 24VDC 0.5KG
ET6896 12W 120° 2700K / 3000K / 4000K 412lm ON/OFF 5 80 SMDx48 24VDC 0.5KG
  • Specifications
  • Download
  • Accessory

ET6896.RGBW

Electrical and Control

Voltage24VDC
Power12W
Power SupplyBuilt-in
ControlON/OFF / 0-10V / DALI
Cable0.5M H05RN-F 3x1mm2
Environmental-40 °C ~ 50 °C


LED and Optics

LED BrandCITIZEN / CREE
LED QuantitySMD X 48
Beam Angle120°
Delivered Lumen412lm
Colour RenderingCRI 80
SDCM5
CCT2700K / 3000K / 4000K
LED OpticPMMA Lens


Physical

HousingDie-cast aluminum
Lens MaterialTempered glass
External ScrewStainless steel material
Surface TreatmentAnticorrosive coating
Net Weight0.5KG
Warranty3 years
RatingIP65
Impact ProtectionIK06
CertificationsCE


ET6896.RGBW

Documents

ET6896.RGBW

Optional accessories

  • Specifications
  • Download
  • Accessory

ET6896

Electrical and Control

Voltage24VDC
Power12W
Power SupplyBuilt-in
ControlON/OFF / 0-10V / DALI
Cable0.5M H05RN-F 3x1mm2
Environmental-40 °C ~ 50 °C


LED and Optics

LED BrandCITIZEN / CREE
LED QuantitySMD X 48
Beam Angle120°
Delivered Lumen412lm
Colour RenderingCRI 80
SDCM5
CCT2700K / 3000K / 4000K
LED OpticPMMA Lens


Physical

HousingDie-cast aluminum
Lens MaterialTempered glass
External ScrewStainless steel material
Surface TreatmentAnticorrosive coating
Net Weight0.5KG
Warranty3 years
RatingIP65
Impact ProtectionIK06
CertificationsCE


ET6896

Documents

ET6896

Optional accessories
