ET9012

  • Product Introduction

Fountain light

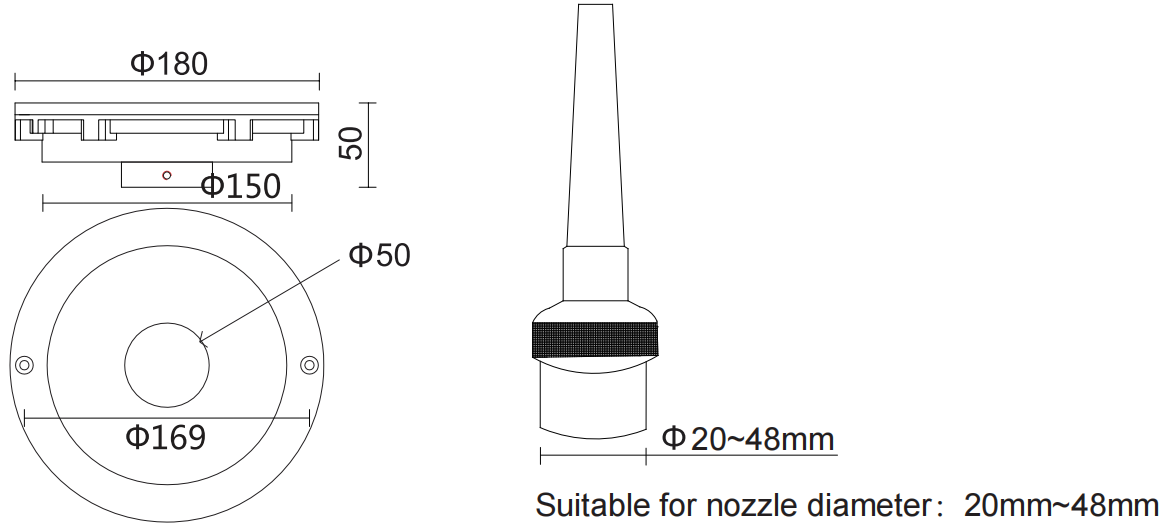

This series of products can be installed on nozzles of different sizes to illuminate the sprayedwater column.

lt can be hidden in water or installed on the ground.

The circular LED layout canmake the water column brighter and more colorful, making it suitable for fountain landscapelighting.

Stainless steel body.

Ultra white tempered glass.

Silicone gasket.

High efficiency PMMA lens.

Stainless steel external screws and mounting plate.

Special air blocking waterproof cable.


Model Power Beam angle CCT Luminous flux Control SDCM CRI LED Voltage Weight
ET9012 16W 8° / 12° / 22° / 35° / 45° 2700K / 3000K / 4000K / 5000K 947.15lm(3000K 8°) ON/OFF 5 80 LEDx9 12VDC 3Kg
  • Specifications
  • Download
  • Accessory

ET9012

Electrical and Control

Voltage12VDC
Power16W
Power SupplyRemote
ControlON/OFF / 0-10V / DALI
Cable1M H05RN-F 3x1mm2
Environmental                                                                                        -40 °C ~ 50 °C


LED and Optics

LED BrandCREE
LED QuantityLEDx9
Beam Angle8° / 12° / 22° / 35° / 45°
Delivered Lumen947.15lm(3000K 8°)
Colour RenderingCRI 80
SDCM5
CCT2700K / 3000K / 4000K / 5000K
LED OpticPMMA Lens


Physical

HousingStainless steel material
Lens MaterialTempered glass
External ScrewStainless steel material
Surface TreatmentAnticorrosive coating
Net Weight3KG
Warranty3 years
RatingIP68
Impact ProtectionIK09
CertificationsCE



ET9012
