Fountain light

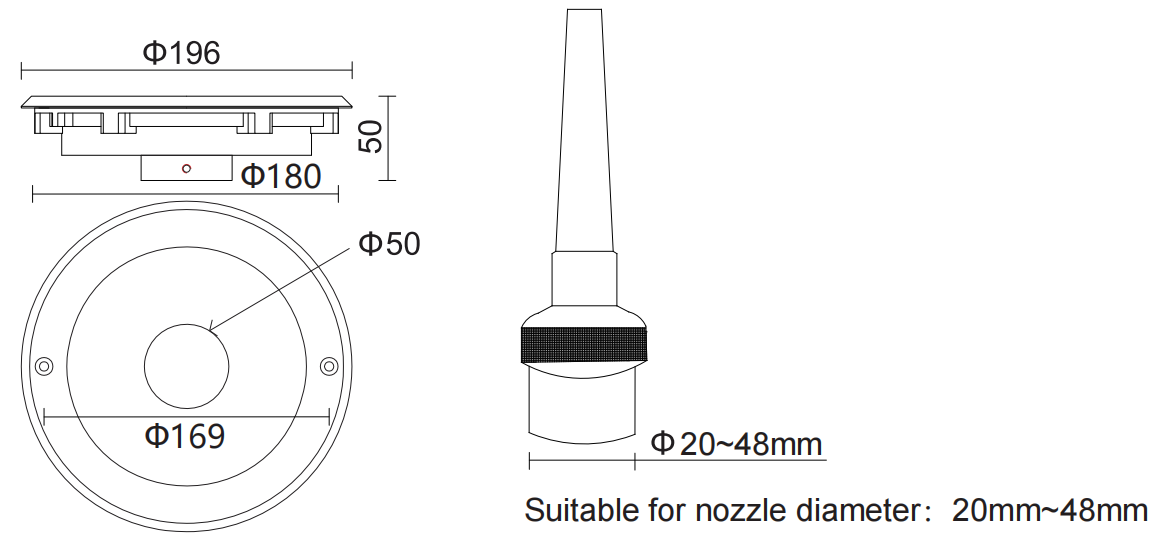

This series of products can be installed on nozzles of different sizes to illuminate the sprayedwater column.
lt can be hidden in water or installed on the ground.
The circular LED layout canmake the water column brighter and more colorful, making it suitable for fountain landscapelighting.
Stainless steel body.
Ultra white tempered glass.
Silicone gasket.
High efficiency PMMA lens.
Stainless steel external screws and mounting plate.
Special air blocking waterproof cable.
| Model | Power | Beam angle | CCT | Luminous flux | Control | SDCM | CRI | LED | Voltage | Weight |
|---|---|---|---|---|---|---|---|---|---|---|
| ET9009 | 16W | 8° / 12° / 22° / 35° / 45° | 2700K / 3000K / 4000K / 5000K | 948lm(3000K 8°) | ON/OFF | 5 | 80 | LEDx9 | 12VDC | 3.1Kg |
Electrical and Control
| Voltage | 12VDC |
| Power | 16W |
| Power Supply | Remote |
| Control | ON/OFF / 0-10V / DALI |
| Cable | 1M H05RN-F 3x1mm2 |
| Environmental | -40 °C ~ 50 °C |
LED and Optics
| LED Brand | CREE |
| LED Quantity | LEDx9 |
| Beam Angle | 8° / 12° / 22° / 35° / 45° |
| Delivered Lumen | 948lm(3000K 8°) |
| Colour Rendering | CRI 80 |
| SDCM | 5 |
| CCT | 2700K / 3000K / 4000K / 5000K |
| LED Optic | PMMA Lens |
Physical
| Housing | Stainless steel material |
| Lens Material | Tempered glass |
| External Screw | Stainless steel material |
| Surface Treatment | Anticorrosive coating |
| Net Weight | 3.1KG |
| Warranty | 3 years |
| Rating | IP68 |
| Impact Protection | IK09 |
| Certifications | CE |
