ET6902

  • Product Introduction

Side Bend Series.The maximum length can be 5m.

Using optical grade environmental protection silicone material, salt resistance, acid and alkali corrosion resistance, UV resistance.

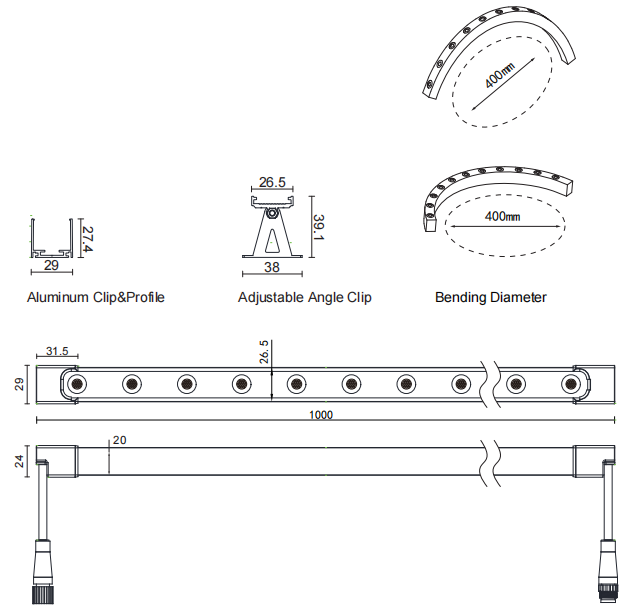

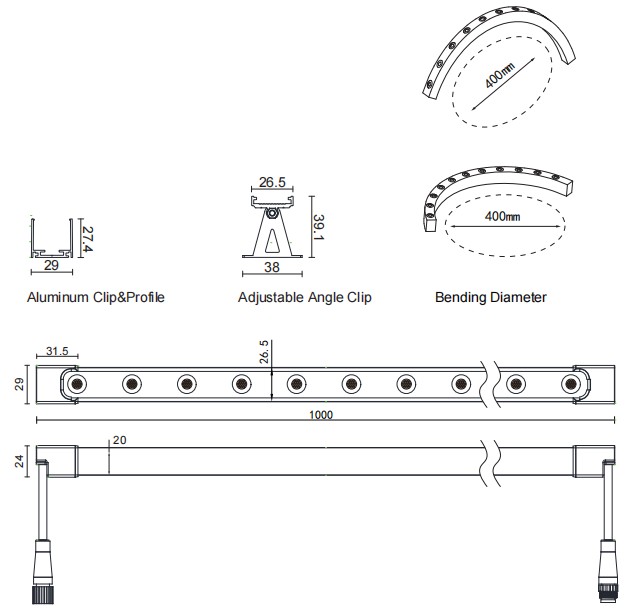

The free bending structure design can perfectly fit the outdoor curved surface of various arcs to achieve the effect of wall washing.

Integrated extrusion molding process, waterproof grade up to IP65.

Patented optical structure design, a variety of angles optional.

Hidden end cap design, easy to install.


Model Power Beam angle CCT Luminous flux Control SDCM CRI LED Voltage Weight
ET6902 24W/m 30° / 50° / 20°x55° 2700K / 3000K / 4000K / 5000K 1580lm(3000K 30°) ON / OFF 5 80 LEDx24 24VDC 0.59Kg
  • Specifications
  • Download
  • Accessory

ET6902

Electrical and Control

Voltage24VDC
Power24W/m
Power SupplyRemote
ControlON/OFF / 0-10V / DALI
Cable0.2M H05RN-F 3x1mm2
Environmental-20 °C ~ 40 °C


LED and Optics

LED BrandCREE
LED QuantitySMDx80
Beam Angle30° / 50° / 20°x55°
Delivered Lumen1580lm(3000K 30°)
Colour RenderingCRI 80
SDCM5
CCT2700K / 3000K / 4000K / 5000K
LED OpticPMMA Lens


Physical

HousingUsing optical grade environmental protection silicone material
Lens MaterialTempered glass
External ScrewStainless steel material
Surface TreatmentAnticorrosive coating
Net Weight0.59KG
Warranty3 years
RatingIP65
Impact ProtectionIK05
CertificationsCE





ET6902

Documents

ET6902

Optional accessories

  • Information
  • Downloads
  • Accessories
  • Service

71 025

DALI cross switch

DALI cross switch
sdsdsds

71 025

DALI cross switch

DALI cross switch
Documents

Product data sheet

Product data sheet

The technical specifications in the instructions for use, product data sheets and quotation texts refer to the products manufactured at the time of publication. We are constantly working to improve the performance and efficiency of our products. The goods delivered may therefore deviate slightly from those advertised.
